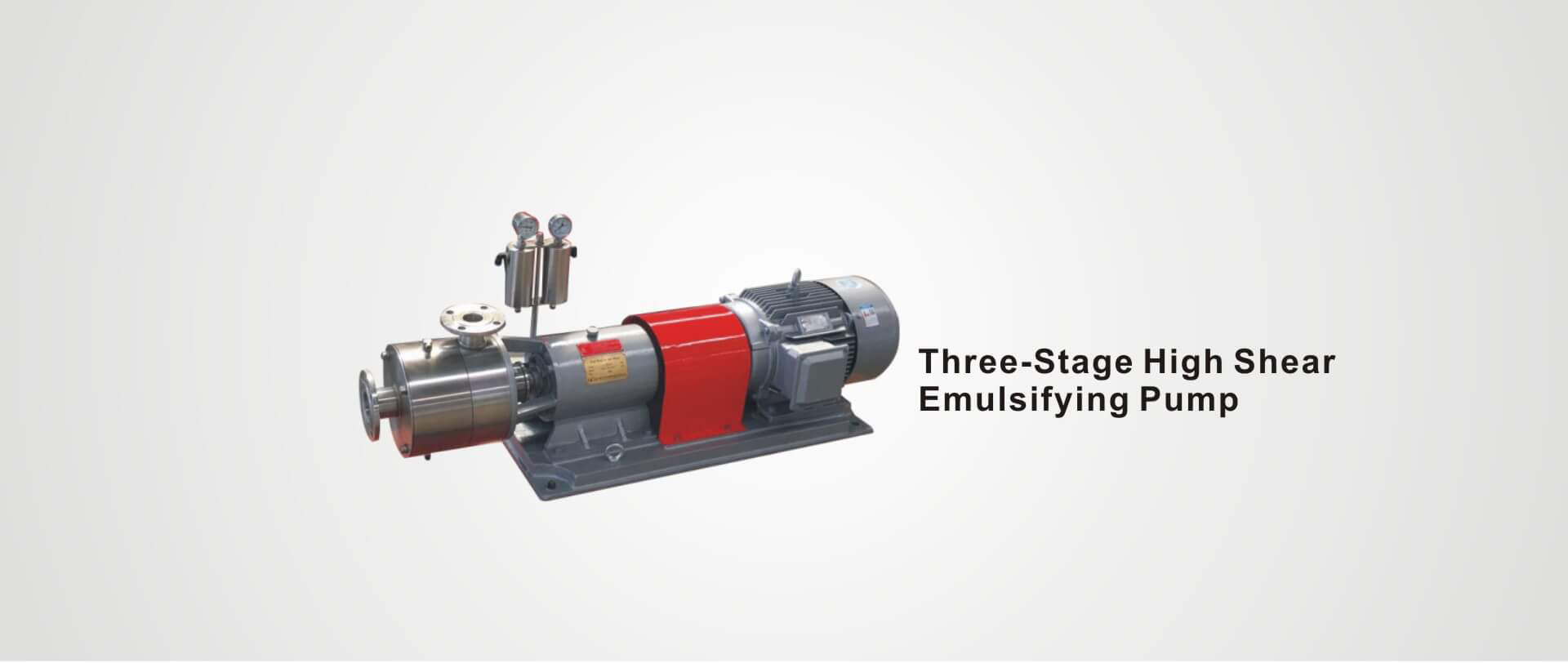

Location：Home > Inline mixer > Multistage emulsifying pump > Three-Stage Inline Mixer >

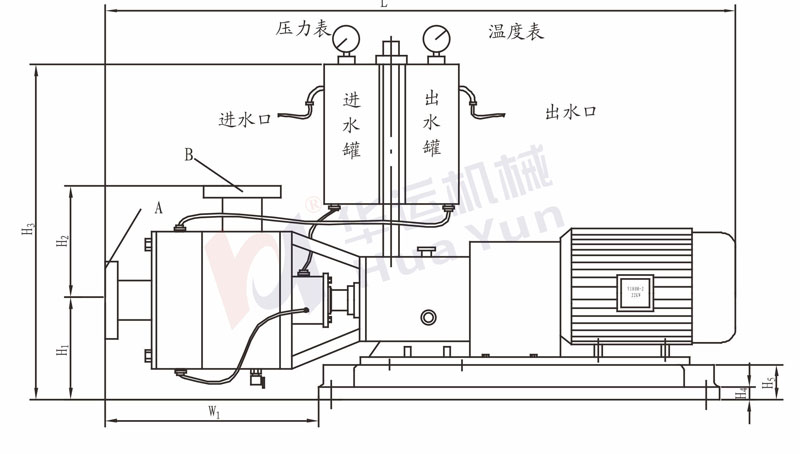

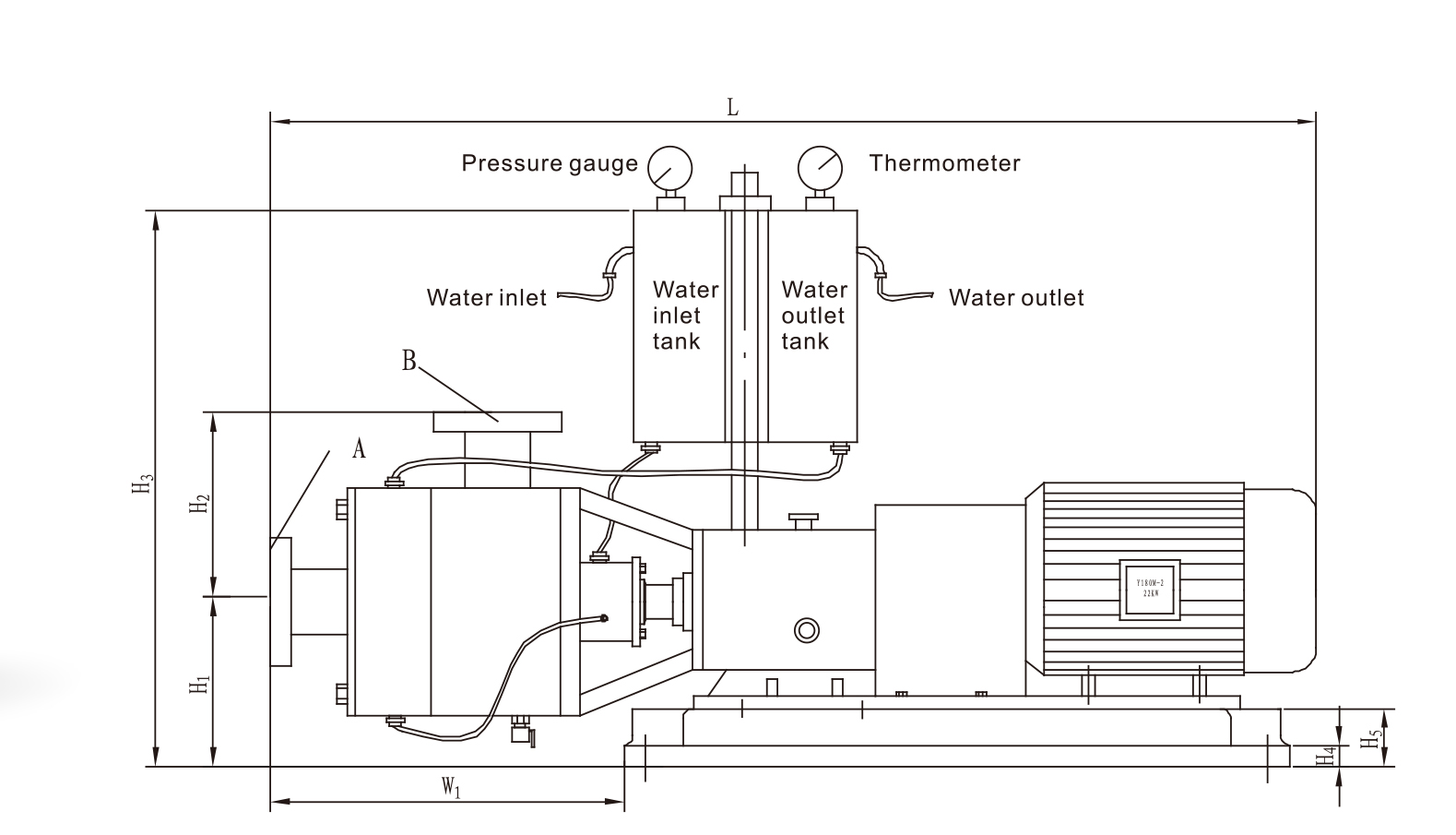

Dimensions installation diagram

Name	Power (KW)	Speed (r/min)	Flow (m³/h)	Lift(M)	L	W1	H1	H2	H3	H4	H5	FlangeA	FlangeB	kg
HIIE405	4	2930	2.5	20	1396	355	182	180	480	12	50	50	40	150
HIIE410	7.5	2930	5.5	20	1396	355	182	180	480	12	60	50	40	190
HIIE415	11	2930	11	20	1503	387	220	202	573	12	50	65	50	279
HIIE420	18.5/22	2930	20	20	1634	412	270	230	603	20	80	80	65	407
HIIE435	37	2930	35	20	1905	446	300	248	693	20	90	100	80	543
HIIE450	55	2930	48	20	2077	463	360	270	723	20	100	100	80	733
