Location：Home > Inline mixer > Multistage emulsifying pump > Two-Stage Inline Mixer >

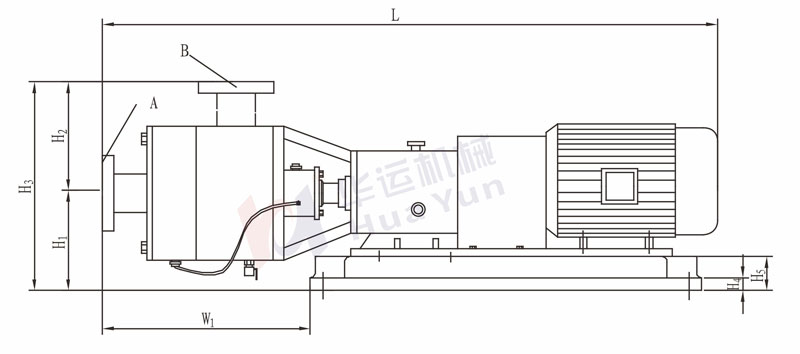

Dimensions installation diagram

Name	Power (KW)	Speed (r/min)	Flow (m³/h)	Lift(M)	L	W1	H1	H2	H3	H4	H5	FlangeA	FlangeB	kg
HIID405	4	2930	2.5	20	1349	308	182	180	480	12	50	50	40	135
HIID410	7.5	2930	5.5	20	1349	308	182	180	480	12	60	50	40	175
HIID415	11	2930	11	20	1463	347	220	202	573	12	50	65	50	249
HIID420	18.5/22	2930	20	20	1584	362	270	230	603	20	80	80	65	372
HIID435	37	2930	35	20	1855	396	300	248	693	20	90	100	80	503
HIID450	55	2930	48	20	2022	413	360	270	723	20	100	100	80	693
